Curved Sliding System

OVERVIEW

The curved window system was developed using the same principle as the sliding window. It maintains the same high-level structural, thermal, and aesthetic performance as straight systems, but with fluid curved geometry and hidden detail. Available in motorized and manual sliding options.

Technical Specifications

Maximum Height

6 m

Maximum Width

3 m

Minimum Width

1000 mm

Minimum Height

500 mm

Maximum Surface

18 sq mtr/leaf

Minimum Radius

1000 mm

Supported Mass

1.6 ton

Double Glazing

32 to 62 mm

Sound Reduction Index

Rw = 43 dB

Energy Efficiency

Thermal coefficient Uw = 1.21 W/m².K

Air Permeability

Class A3

Water Resistance

Class 7A

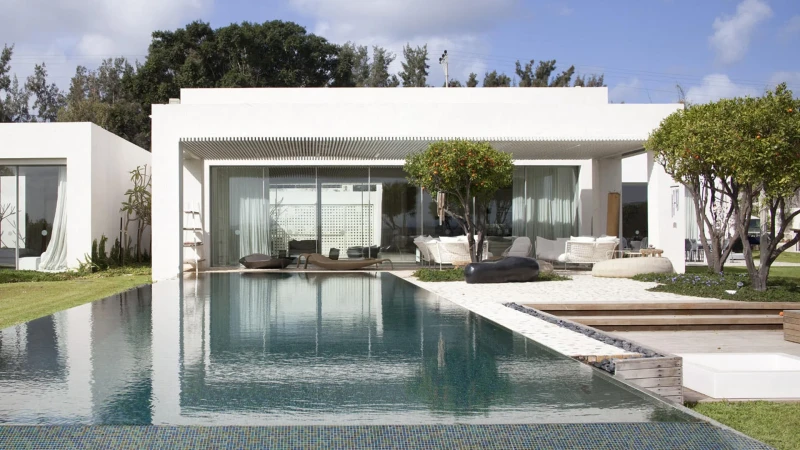

BESPOKE SOLUTIONS

We create bespoke fenestration solutions tailored to each project’s design, scale, and climate—from retractable doors to custom corner systems.
