The lift mechanism reduces friction, sashes lift slightly when opening, ensuring ultra-smooth handling, making even large, heavy glass panels easy to move with minimal effort.
It is a robust system in appearance, but light at the same time, providing an ultra-smooth opening action and perfect sash sliding over a stainless-steel rail.
Possibility of large sash dimensions make this system ideal for enclosing large spaces, at the same time that it provides maximum luminosity.
Possibility of dual color systems, colour powder coating (RAL, mottled & rough) wood effect powder coating.
Frame 180 mm
280 mm 3 rails
380 mm 4 rails
Sash 80 mm
Width upto 3300 mm
Height upto 3500 mm
Upto 400 kg
Glazing from 22 mm to 65 mm
Sliding 1 rail (1 sash + 1 fixed light) 2, 3, 4 rails

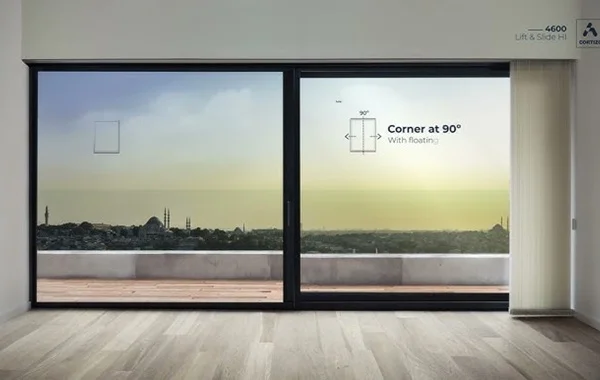

Possibility of 90 degree opening without mullion.
Class 4
Class E750
Class C5
Uw from 0.9 (W/m²K)
Rw upto 43 db
We create bespoke fenestration solutions tailored to each project’s design, scale, and climate—from retractable doors to custom corner systems.
